INS Kalvari S-21 SSK's On-Board Systems & Fitments

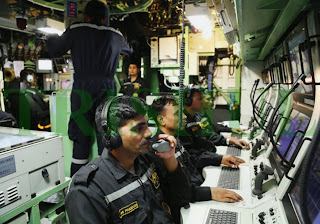

A unique feature of each of the Indian Navy’s six Scorpene SSKs is an on-board tactical situational awareness display console (above) of the kind normally found on SSNs, SSGNs and SSBNs. On this single console, the SSK’s Commanding Officer can view overlaid electronic navigation charts, the tactical situation picture, as well as a THALES-provided track table interface to the US Naval Research Laboratory-developed display and analysis tool set, called SIMDIS. The SIMDIS is a set of GOTS software tools in use to support 2-D and 3-D analysis and visualization of the undersea battlefield. SIMDIS allows an integrated real-time view of both time-space position information (TSPI) and telemetry data, and it also provides an intuitive view of complex system interactions before, during and after an event.

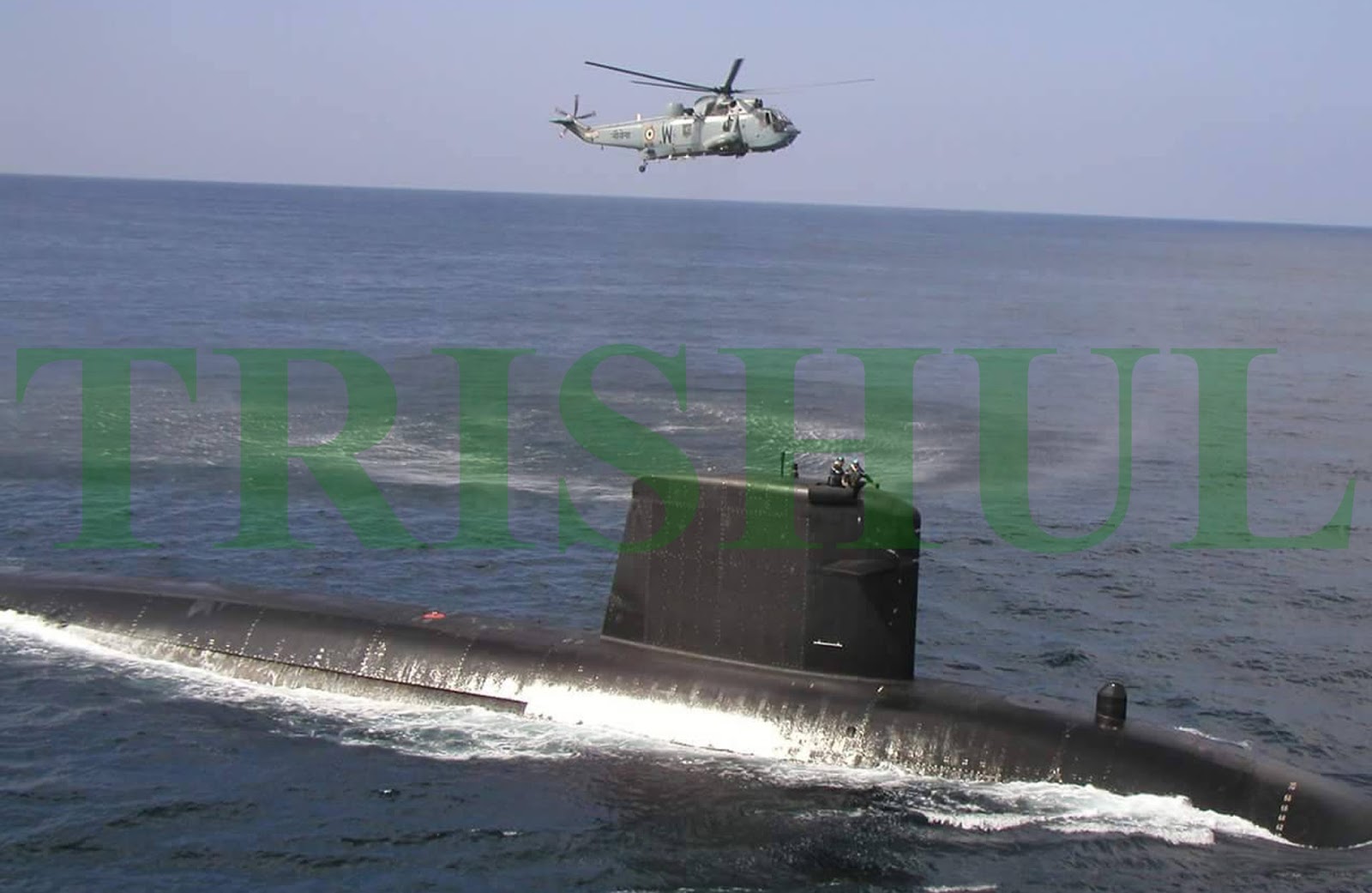

The sails of the Indian Navy's CM-2000 Scorpene SSKs (above) differ from those of the CM-2000 Scorpene SSKs of the Royal Malaysian Navy (below) in both looks and content, since the former play host to the VLF buoyant cable antenna suite.
Principal Weaponry
France’s Direction Générale de l’Armement (DGA) has mandated that the F-21 HWT will equip all French Navy nuclear submarines. The F-21 has also been ordered by the Brazilian Navy. Naval Group has developed an important component for safe deployment: an energy pack based on an aluminium/silver oxide electric battery that needs seawater for activation—an element unlikely to be found in the submarine. To meet submarine safety requirements, the F-21 will be launched by a technique in which it is pushed out of the boat by a piston (rammer), after which a valve in the torpedo opens and lets seawater into the battery to activate it. The battery provides high energy density, and is sufficiently compact that the overall length of the F-21 HWT—6 metres (19.6 feet) long with a 21-inch (533mm) diameter—is compatible with legacy launchers. One problem with competitive torpedoes that are equipped with older-generation batteries is that to achieve the energy for their missions and countermeasures, they need long batteries, which add so much to their length that they no longer fit into launchers. The torpedo must also have enough energy left once it has reached its target to attack and sink high-value targets such as aircraft carriers and frigates. This explains the importance of the primary battery as the energy source. The UK, Russia, US and Sweden have chosen thermal systems as their energy source. France specified the electric system because it is safe and silent. In underwater missions, silence is of the utmost importance to avoid detection by the enemy. This system enables a totally silent attack.
The F-21 is digital and operates in depths of 15-500 metres, which means it can be used in littoral and blue-water operations. In shallow waters there are “parasite” sounds that confuse torpedoes, which home in on targets acoustically. The F-21 treats the sound signals digitally with the same up-to-date processing as in modern warship sonars, which enables the F-21 to largely overcome this difficulty. The F-21 weighs 1.2 tons, has a range of 50km, speed of 50 Knots., and 1-hour endurance. It can attack multiple targets and has extended fibre-optic wire guidance that is resistant to most countermeasures. The warhead contains PBX B2211, a high-impulse, high-bubble-energy, insensitive explosive that conforms to NATO’s STANAG-4439 and France’s MURAT (Munitions a Risques Attenues) standards. The torpedo uses an all-electric “fuse-and-slapper” detonation technology. Primarily used in guided-missiles, the plasma-based slapper system is more stable and safer than the conventional electro-mechanical detonation systems in most torpedoes. The torpedo configuration can be changed from a weapon to a training device by just puting an exercise section on it instead of an explosive one. One can also change the primary battery, providing it with a secondary battery based on lithium-ion technology, which is reusable a great number of times.

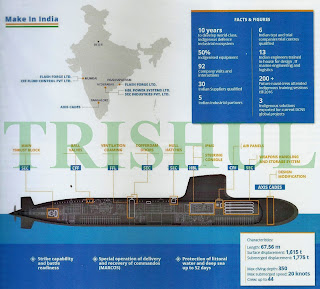

Localisation Of Hardware Content
SANT (HELINA-ER)

Friday, December 8, 2017

Dazzle-N-Destroy Air-Defence Options

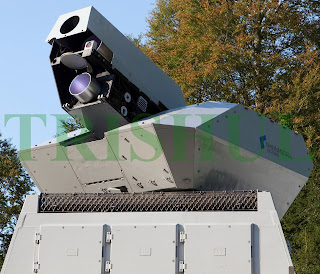

New-generation mobile, high-energy solid-state laser-based directed-energy weapons (DEW) are fast emerging as cost-effective counter-rocket, counter-artillery, counter-PGM, counter-UAV and counter-mortar systems, since a laser destroys targets with pinpoint precision within seconds of acquisition, then acquires the next target and keeps firing. Such DEWs will thus augment existing kinetic strike weapons like surface-to-air missiles and offer significant reductions in cost per engagement. With only the cost of diesel fuel, a HEL-based DEW system can fire repeatedly without expending valuable munitions or additional manpower. Target destruction is achieved by projecting a highly focused, high-power solid-state chemical laser beam, with enough energy to affect the target, and explode it in midair. This operational concept is thus for the very first time offering the first ‘reusable’ interception element. Existing interceptors use kinetic energy kill vehicles (such as blast-fragmentation warheads), which are not reusable.
A major advantage of HEL effectors is their outstanding flexibility with regard to escalation and de-escalation. Laser beams are eminently scaleable. When fired at optics, radio antennas, radars, ammunition or energy sources, for example, HEL effectors are able to neutralise entire weapons systems without destroying them. At ranges of 2km, mobile HEL effectors in the 50kW laser class clearly demonstrated their ability to locate, track and destroy optics such as riflescopes and remotely operated cameras. HEL effectors have also been used to quickly cut the power-supply cable of a radar mast and then the mast itself. Laser engagement of an ammo box followed by swift deflagration of its explosive content has also been accomplished. When integrated with a vehicle-mounted active phased-array radar for target acquisition/tracking, such HEL effectors can provide air-defence against UAVs of all types, as well as mortar rounds, PGMs and even manned combat aircraft.
The idea that combat aircraft can use solid-state laser-based DEW systems defensively, creating a sanitised sphere of safety around the aircraft, shooting down or critically damaging incoming guided-missiles and approaching aircraft with their laser turrets, is also fast becoming a reality. Fifth-/sixth-generation multi-role combat aircraft will also use such a system offensively, leveraging their stealth capabilities to sneak up on enemy aircraft and striking with speed-of-light accuracy. The introduction of nimble and compact lasers on the aerial battlefield will likely allow combat aircraft designs to cease putting a premium on manoeuvrability, as lasers are speed-of-light weapons. In other words, as long as the enemy can be detected and is within the laser’s range, they are at risk of being fried regardless of how hard they try to evade via hard turns and other high-g manoeuvres.
Countermeasures will become more about evading initial detection, staying outside an opposing aircraft’s laser’s envelope, and confusing targetting sensors than out-manoeuvring the adversary. In other words, the dogfights of the future will look nothing like they do today. One issue pointed out by Northrop Grumman is that these lasers, along with future engines and avionics, will put out a huge amount of heat, making thermal control a huge concern for stealthy aircraft, IR search-n-track sensors--both air- and ground-based--are only becoming more sensitive and reliable as time goes on. As a result, future stealthy combat aircraft will have to keep their cool in order to remain undetected over the battlefield.
One way aerospace OEMs like Northrop Grumman are looking at dealing with this problem will be by using a large thermal accumulator to control the aircraft’s heat signature while using laser weaponry, although Northrop Grumman seems to be pursuing a different—albeit more shadowy—way of dealing with the problem. Venting the heat off-board only raises the aircraft’s visibility to heat-sealing sensors. Another option is to develop a thermal accumulator, which is a path the USAF is pursuing. An electrical accumulator stores the energy on-board in the same way as a hydraulic accumulator, releasing the latent energy as necessary to generate a surge of power. But Northrop Grumman’s sixth-generation multi-role combat aircraft concept, for instance, eschews the accumulator concept for thermal management because such a system imposes a limitation on the laser weapon’s magazine size or firing rate, forcing the pilot to exit combat until the accumulator is refilled with energy. Northrop Grumman is therefore pursuing a concept that does not rely on accumulators or off-board venting to manage the heat.
Fibre-lasers are typically around 25% efficient at converting DC current to light.  Thus a 50kW, two-minute blast would require over 6kW-hours of juice—or roughly 10 car batteries worth of power (car batteries have typically around 1.2kW-hour theoretical capacity and are 50% efficient in the real world).  However, fibre-lasers are bulky so may not be mountable on vehicles. Therefore, chemical solid-state lasers, are a more likely possibility, but are expensive on a per-shot basis. The biggest problem will likely be the cooling.  For instance, the US Navy’s existing seaborne 15kW HEL effectors already need heavy advanced cooling systems.  That will suck down yet more power, while increasing the system size and weight. The US Navy’s projected 30kW solid-state laser weapon system (LaWS) requires the laser to be able to have several different power settings: from a so-called dazzle effect to confuse sensors to a lethal ability that would be able to splash an UAV or an inbound anti-ship cruise missile, or to disable a small boat.
On land, the US Navy wants its HEL-based DEW to weigh less than 2,500 lb and achieve a minimum 25kW beam strength, capable of shooting down UAVs.  The long-term goal is to sustain a 50kW blast for two minutes with optronics capable of adjusting to environmental conditions like humidity and smoke/haze.  The beam is also expected to have a fast turn-around time--a 20-minute recharge to 80% of total capacity (power and thermal).

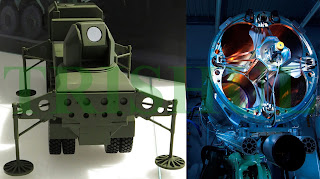

Boeing has developed a 10kW HEL-based DEW that weighs 650 lb and will be operated by a squad of eight to 12 soldiers. Able to be assembled in just 15 minutes, this DEW is capable of generating an energy beam to acquire, track, and identify a target—or even destroy it—at ranges of at least 22 miles. Within five years the energy density of this weapon’s batteries could be doubled and the other components should also be further reduced in size to get the weight down to 200 lb. Both Boeing and Raytheon, along with RAFAEL of Israel, are now developing 300kW HEL effectors could fit into 15-tonne trucks. Similarly, Germany’s Rheinmetall, through its 30kW Skyshield air-defence HEL effector, has demonstrated the ability to combine several laser beams on a single target, which develops sufficient power to destroy UAVs, PGMs and cruise missiles.
China’s Jiuyuan Hi-Tech Equipment Corp, a firm under the China Academy of Engineering Physics (CAEP), claimed on November 3, 2014 that it has developed a land-mobile HEL-based DEW that can shoot down small aircraft and UAVs out to a distance of 2km within seconds.  It is reportedly effective against aircraft flying at up to 50 metres per second up to a maximum altitude of 500 metres. The definitive Sentinel system can locate small aircraft within a 1.2-mile radius and shoot down small drones flying under 110mph and below 1,600 feet.
Another China-based company—GuoRong Technology—recently conducted technical trials of its truck-mounted DEW that can destroy airborne drones. The company claims that its DEW the laser successfully fired at least twice, including one on a plate of aluminum a few millimetres thick at a distance of 360 metres. In less than 10 seconds, the aluminum plate was pierced with a hole about 4 centimetres in diameter, and the drone, with its control unit destroyed, finally crashed to the ground.

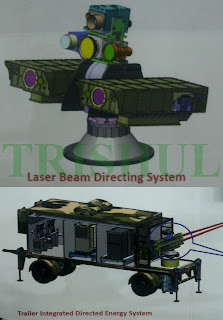

India’s defence R & D Organisation (DRDO) too has been involved with the development of HEL-based DEW since 2008, with all R & D work being conducted at the High Energy Laser Integration Facility in the campus of the Hyderabad-based Centre for High Energy Systems and Sciences (CHESS). The CHESS is mandated by DRDO to be the nodal centre for the design and development of DEWs. Another DRDO-owned laboratory, the Laser Science and Technology Centre (LASTEC) is working on the development of laser source technologies for DEWs, and has so far developed core technologies, including gas dynamic high-power laser (GDL) and chemical oxygen iodine lasers (COIL), and has thus far demonstrated 100kW (multi-mode) GDL and 20kW (single-mode) COIL sources. LASTEC has also developed 1kW fibre-laser through collaboration.
Presently, R & D on 5kW and 9kW fibre-laser sources utilizing complex beam-combining technologies is underway. Power output from these sources will be combined in space for various tactical applications. LASTEC has also initiated work on the development of pulsed fibre-lasers for different military applications. To this end, the laboratory’s ADITYA project was an experimental testbed to seed the critical DEW technologies.
