China’s NLOS-BSMs For Export & Hatf-9/Nasr/M-20 NLOS-BSM Explained

NLOS-BSMs of Chinese origin are presently being marketed by two state-owned entities: China National Precision Machinery Import & Export Corp (CPMIEC), and Aerospace Long-March International Trade Co Ltd (ALIT). The latter’s latest product is the M-20, which has been exported to Pakistan, where it known as the Hatf-9/Nasr. Capable of striking targets between 70km and 270km, the all-weather capable M-20, with a Mach 3 cruise speed, comes armed with both a 200kg unitary high-explosive (HE) blast-fragmentation warhead for engaging high-value and time-sensitive targets, as well as a sub-kiloton yield tactical nuclear warhead. Two M-20s housed inside cannisters are mounted on a 8 x 8 transporter/erector/launcher (TEL). For navigation purposes, use is made of a RLG-INS coupled to a GPS receiver (for receiving high-accuracy navigational updates in secure PY-code from China’s ‘Beidou’ constellation of GPS satellites), and an infra-red sensor for terminal homing that gives the missile a CEP of less than 10 metres.
CPMIEC’s 2-tonne B-611M missile is designed to attack supply lines, warehouses, ballistic/cruise missile launch sites, SAM batteries, command-and-control centres, air bases, road/railway transportation hubs, and area targets in urban surroundings. Armed with a 480kg HE warhead, the B-611M has 280km range. Up to two cannister-mounted B-611Ms can be carried by a wheeled TEL.

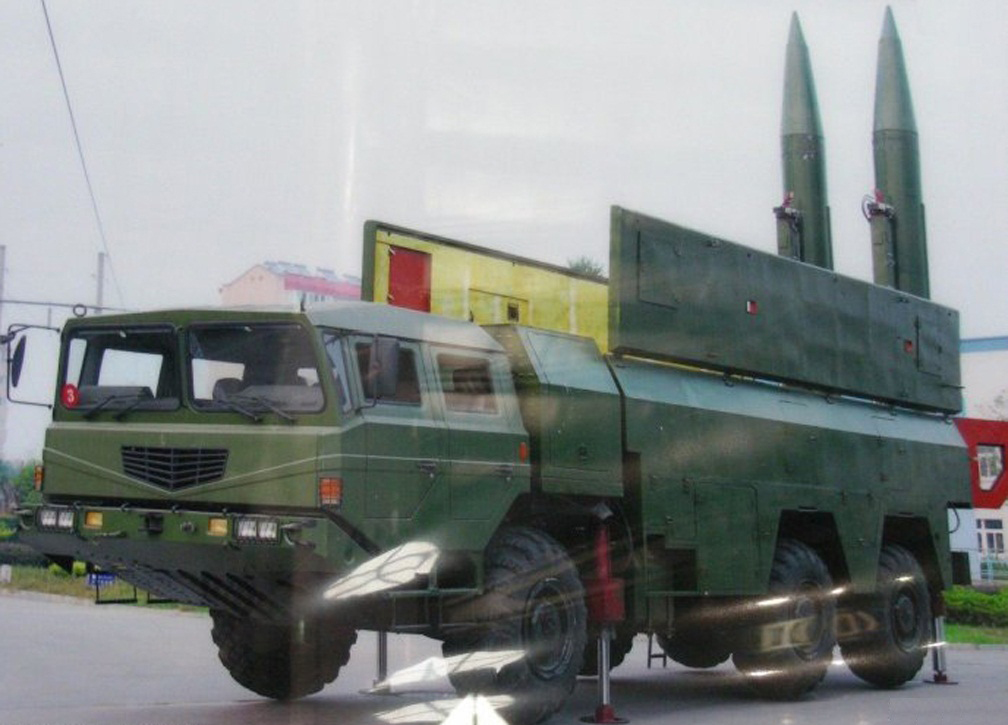

Another NLOS-BSM from CPMIEC is the P-12, which made its public debut in November 2006. Up to two P-12s are carried in an enclosed compartment mounted on a 6 x 6 TEL. The P-12 has a range of 150km, and it comes armed with either a 300kg HE blast fragmentation warhead, or a cluster warhead containing 19 anti-armour sub-munitions. Both the B-611M and P-12 have a CEP of about 2 metres when using a RLG-INS coupled to a GPS receiver, plus an optronic sensor for terminal homing.
CPMIEC’s latest NLOS-BSM offering is the vertically-launched joint attack rocket & missile (JARM) system, which can fire both the 280km-range BP-12A and the 200km-range SY-400 from a common launch platform.
The JARM, which made its public debut in November 2010, makes use of combined GPS-RLG-INS navigation systems to achieve a CEP of 3 metres  A typical JARM Battery comprises ten 8 x 8 TELs housing either 80 SY-400s or 20 BP-12As, or a combination of both.—Prasun K. Sengupta
